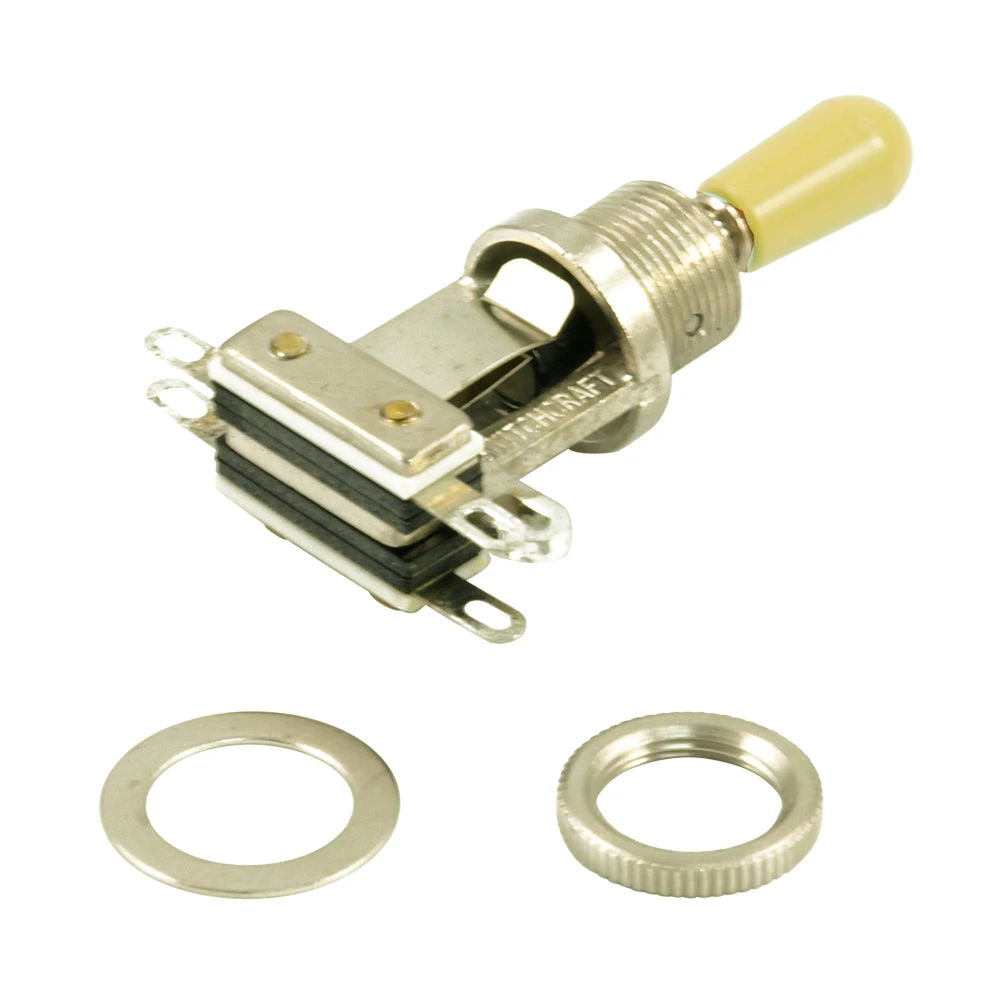

WD Short Toggle Switch

This short frame Switchcraft® straight toggle switch is a blend between the long WDE7SW for Les Paul® guitars and the right angle WDE6SW used in SG’s® and is used either where body thickness will not accommodate the longer switch or where a more compact switch design is desired. This special switch was designed as a high-quality alternative to existing short frame switches.

Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
Leakage Resistance: 1,000 MW or greater
Dielectric Strength: 250 VDC
Materials:
Frame: Steel, plated
Bushing and Shaft: Copper alloy, plated
Springs: Copper alloy
Knob: Molded thermoplastic
Mounting Hardware: Knurled copper alloy locknut T10711, supplied
Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end.
Depth required = 15/16 in.
Threaded bushing length = 3/8 in.
Pre-tinned for soldering

Made in the USA
